The VariColour Filter Tray is an adjustable colour and contrast device that changes the image in front of the camera sensor or film plane. This product builds on the history of the Varicon, built to pre-flash film and lift the shadows. With the innovations in LED technology, it is now possible to create lightweight full RGBW control, allowing for creative possibilities that are nearly impossible to replicate in post.
While this concept is not new, it has not been possible to offer to most filmmakers at an affordable cost until the recent developments in quick prototyping and 3d printing technologies. The VariColour Filter Tray is offered at the most competitive possible price, approximately one-tenth that of the next least expensive option.

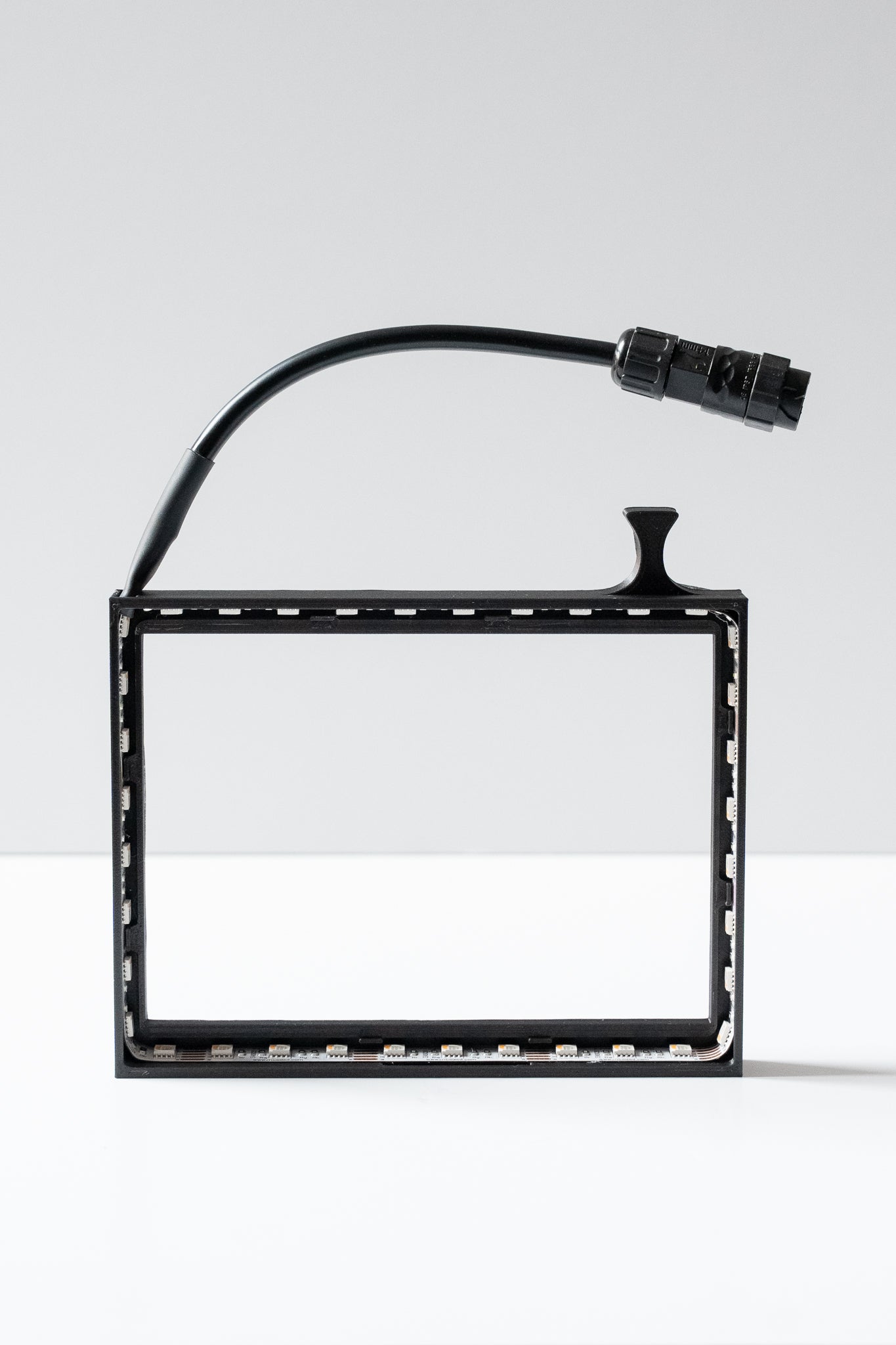

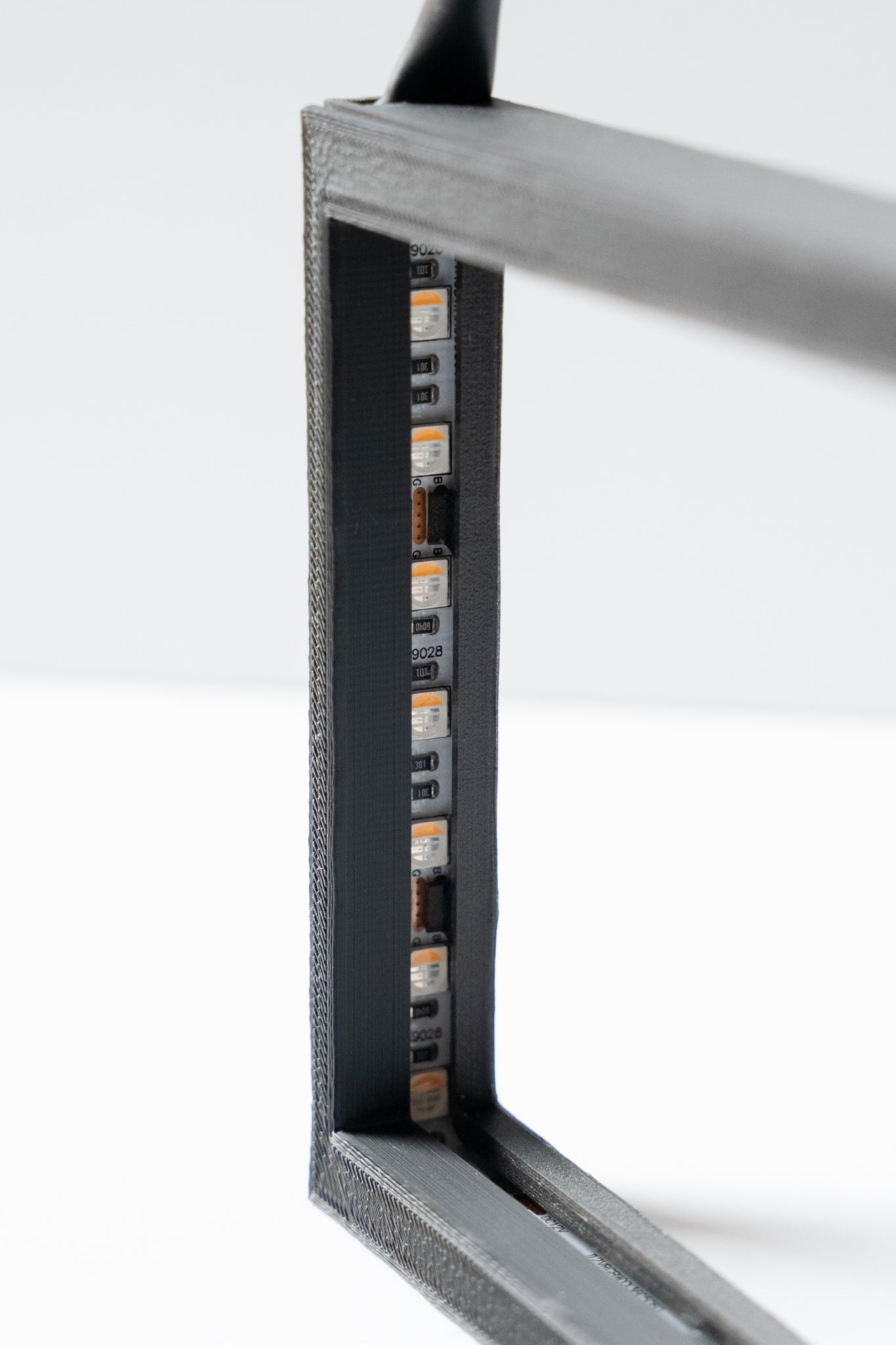

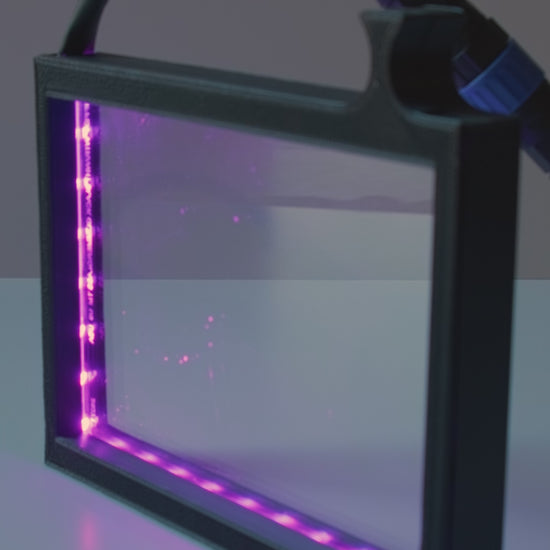

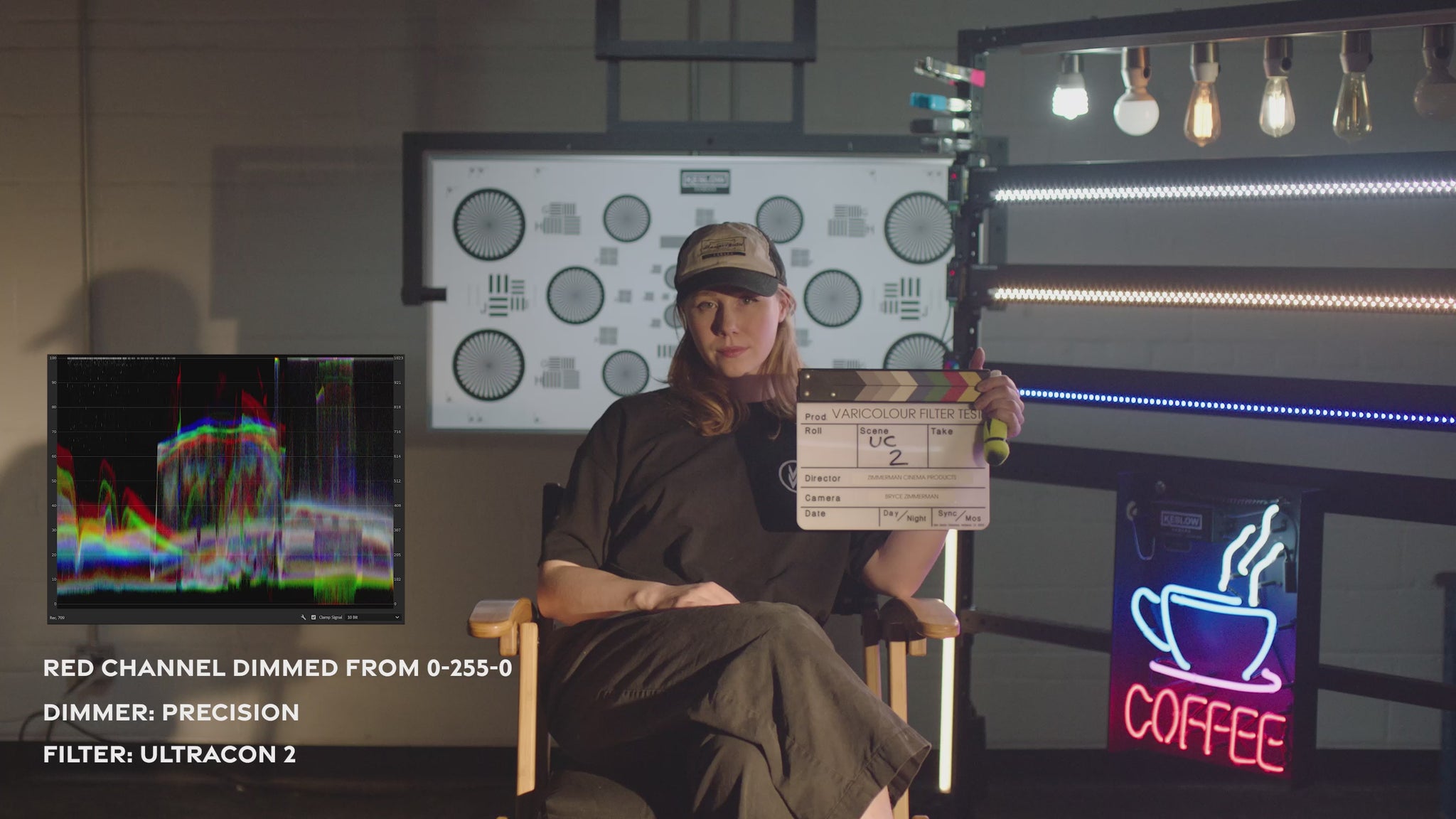

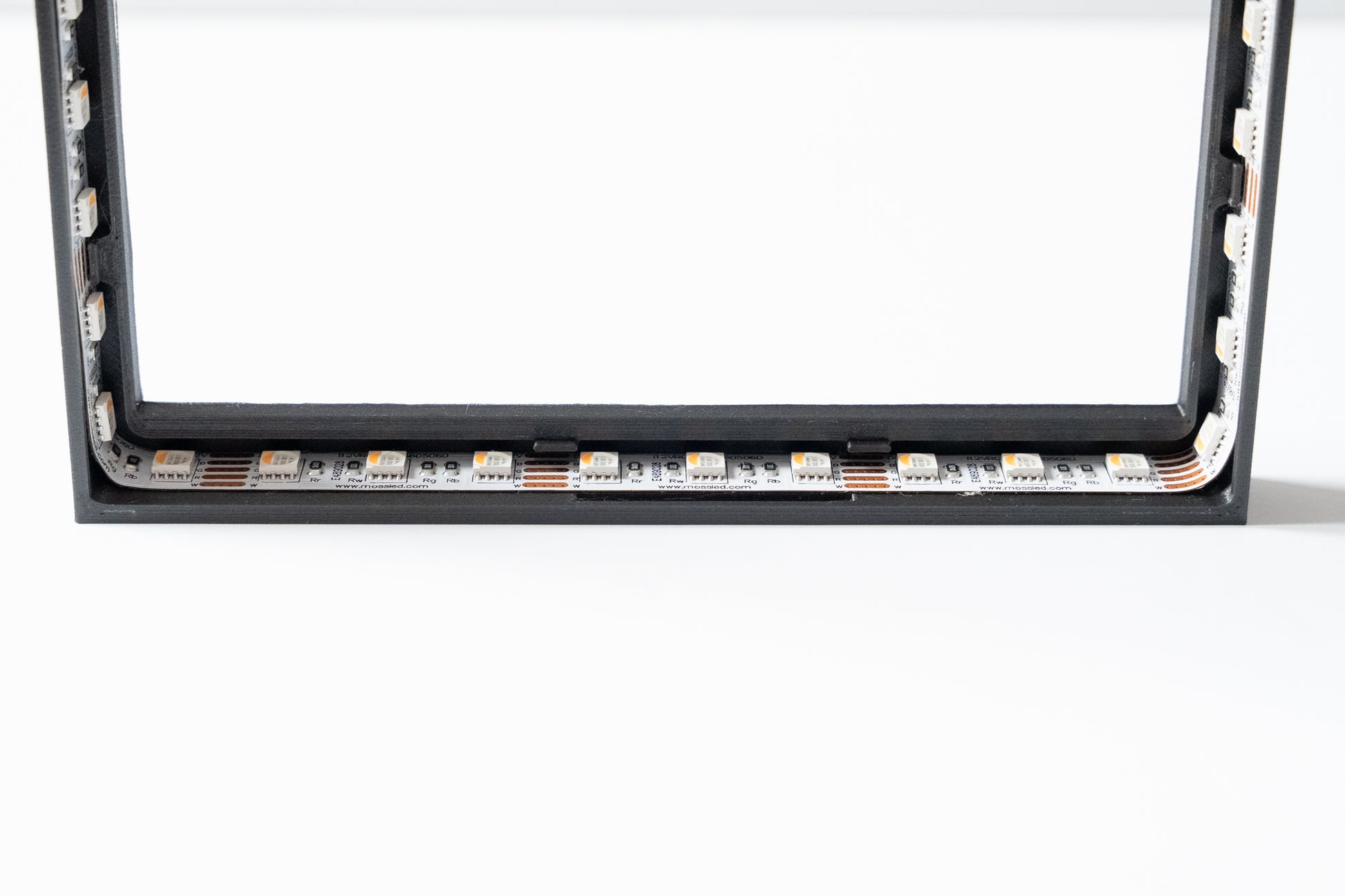

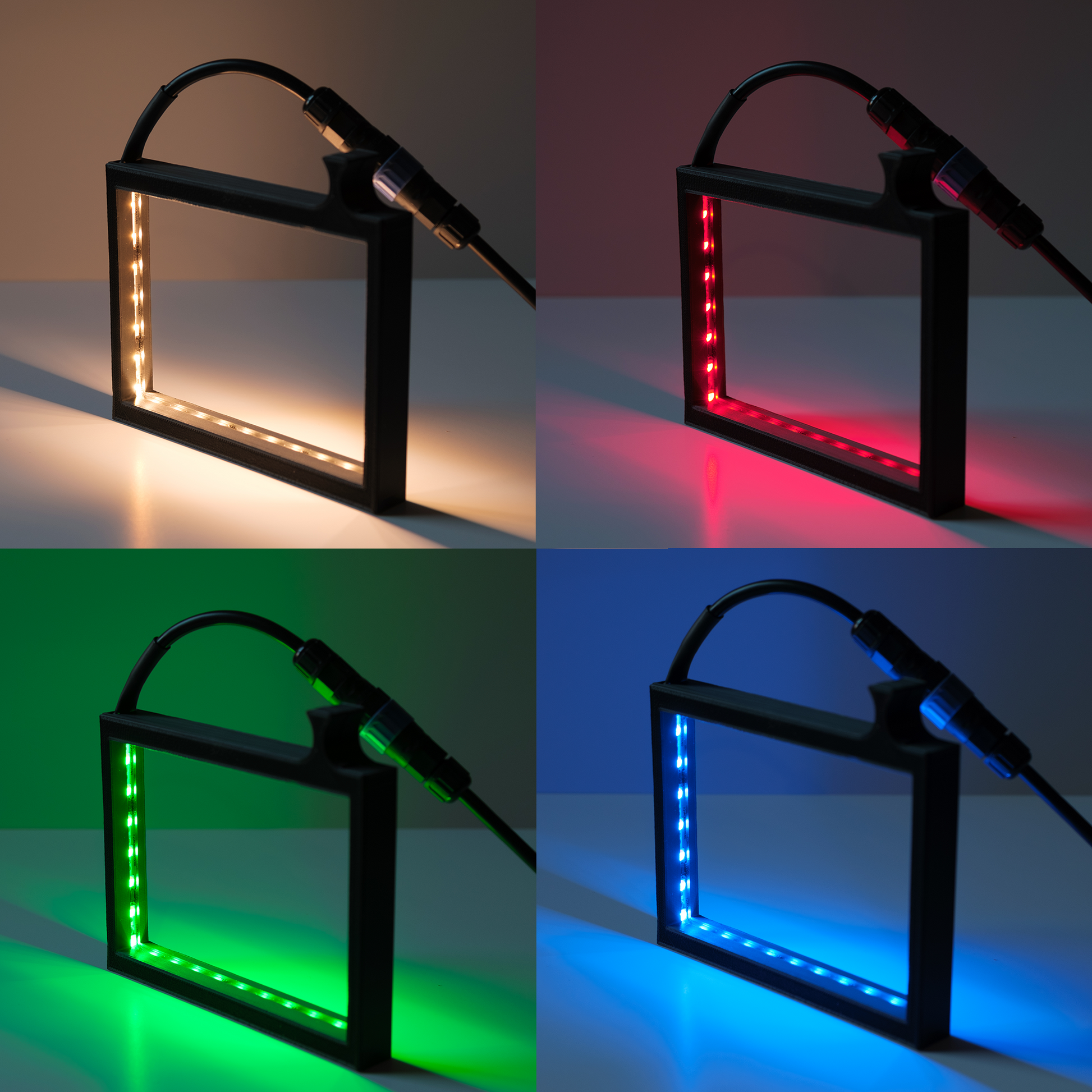

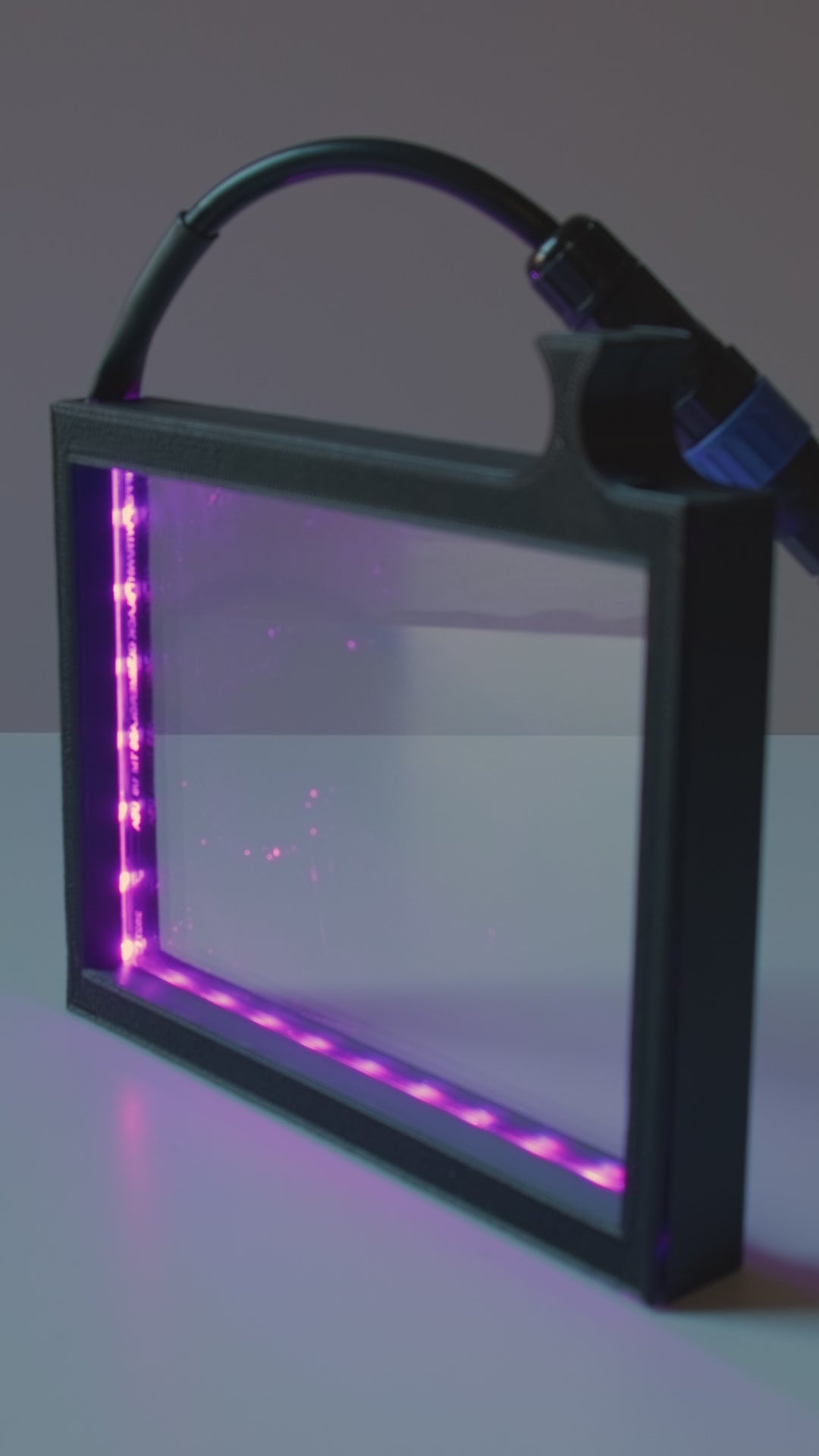

The LED lights around the edge of the filter tray illuminate any dispersal elements in the filter and create colour effects as the light scatters. Depending on the filter used, the intensity and type of colour shift changes. Check out our tests page for an idea of the possibilities.

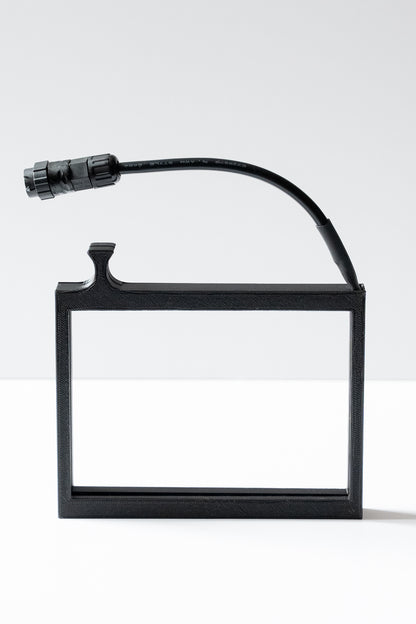

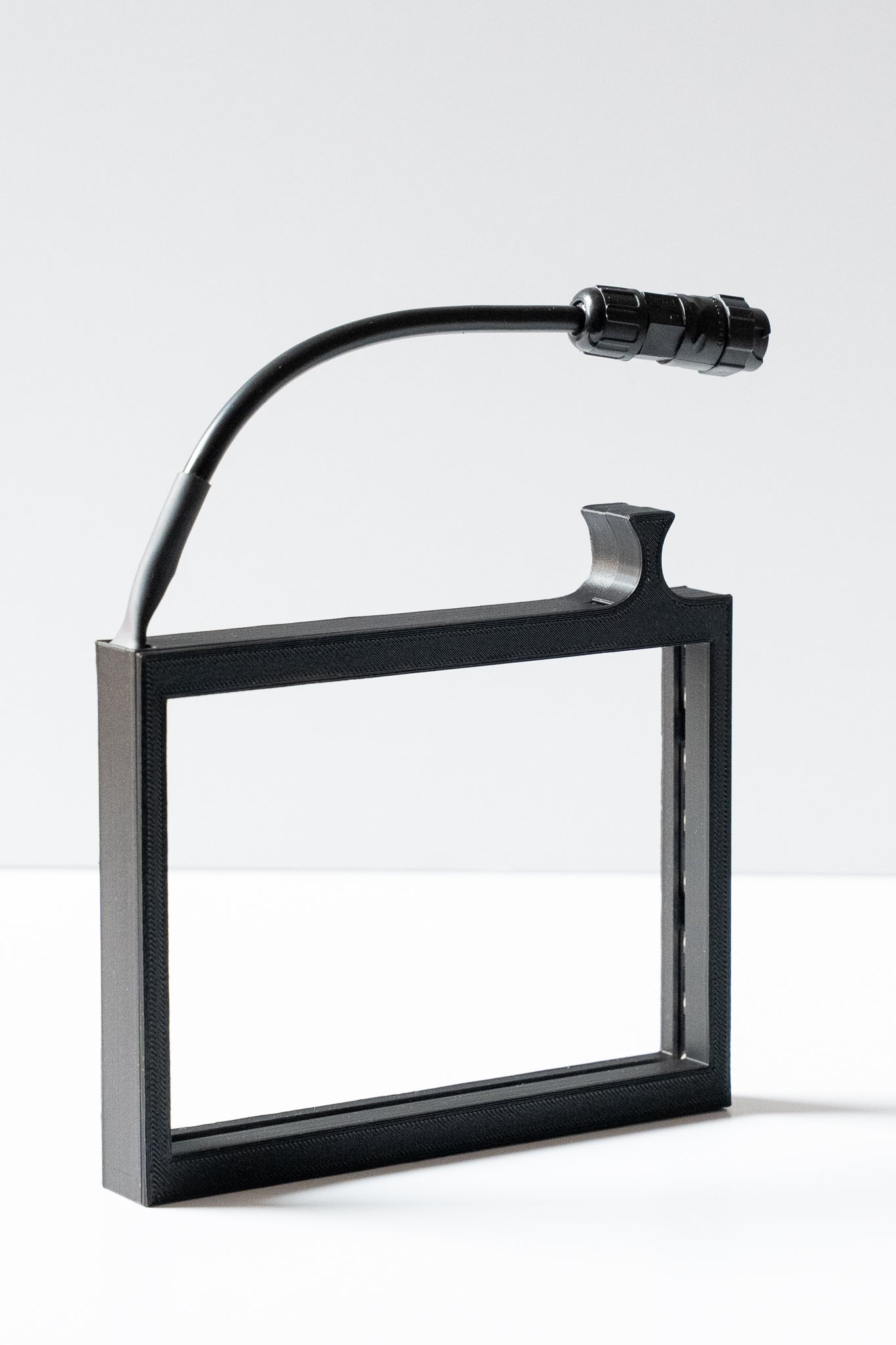

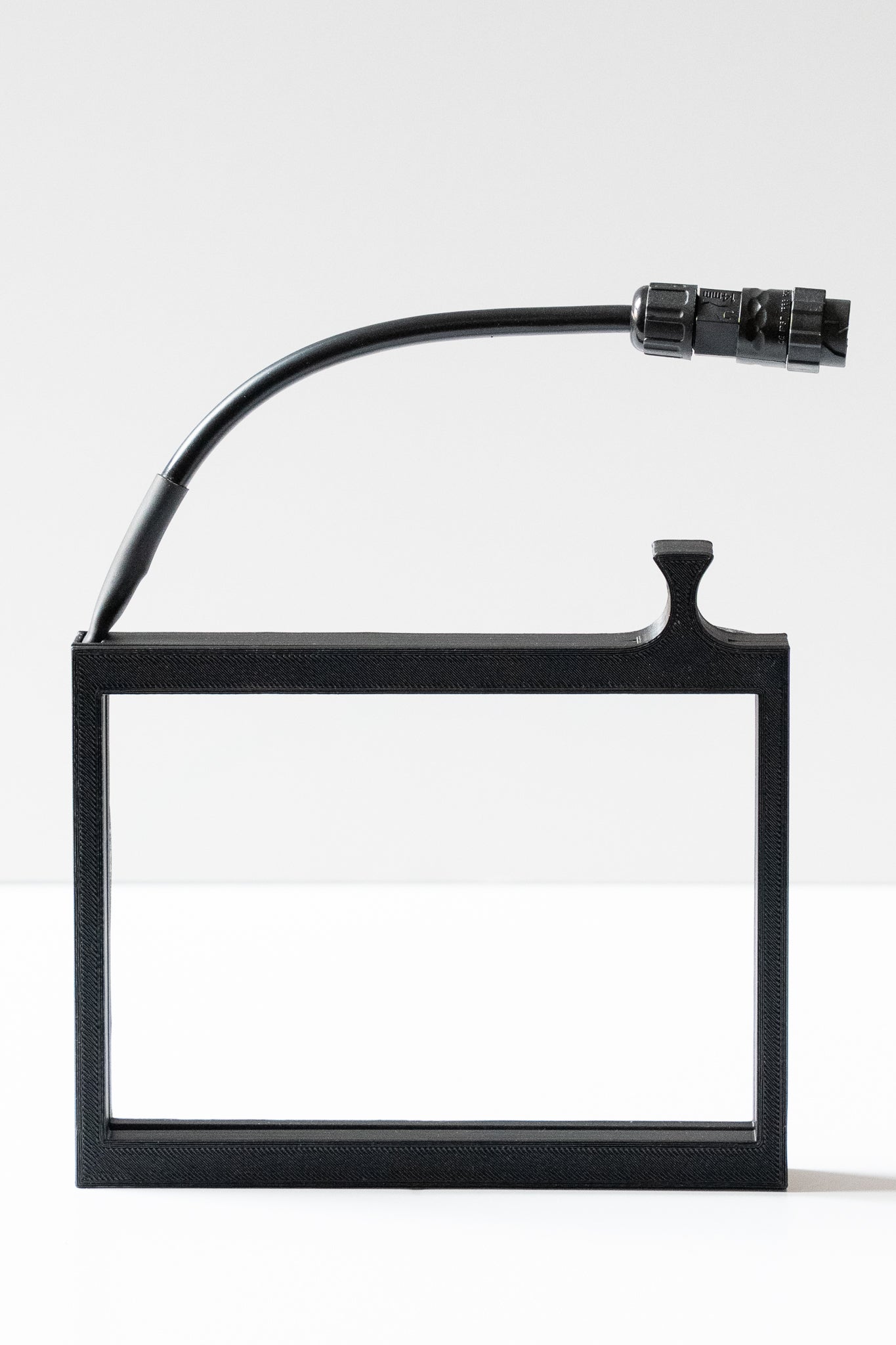

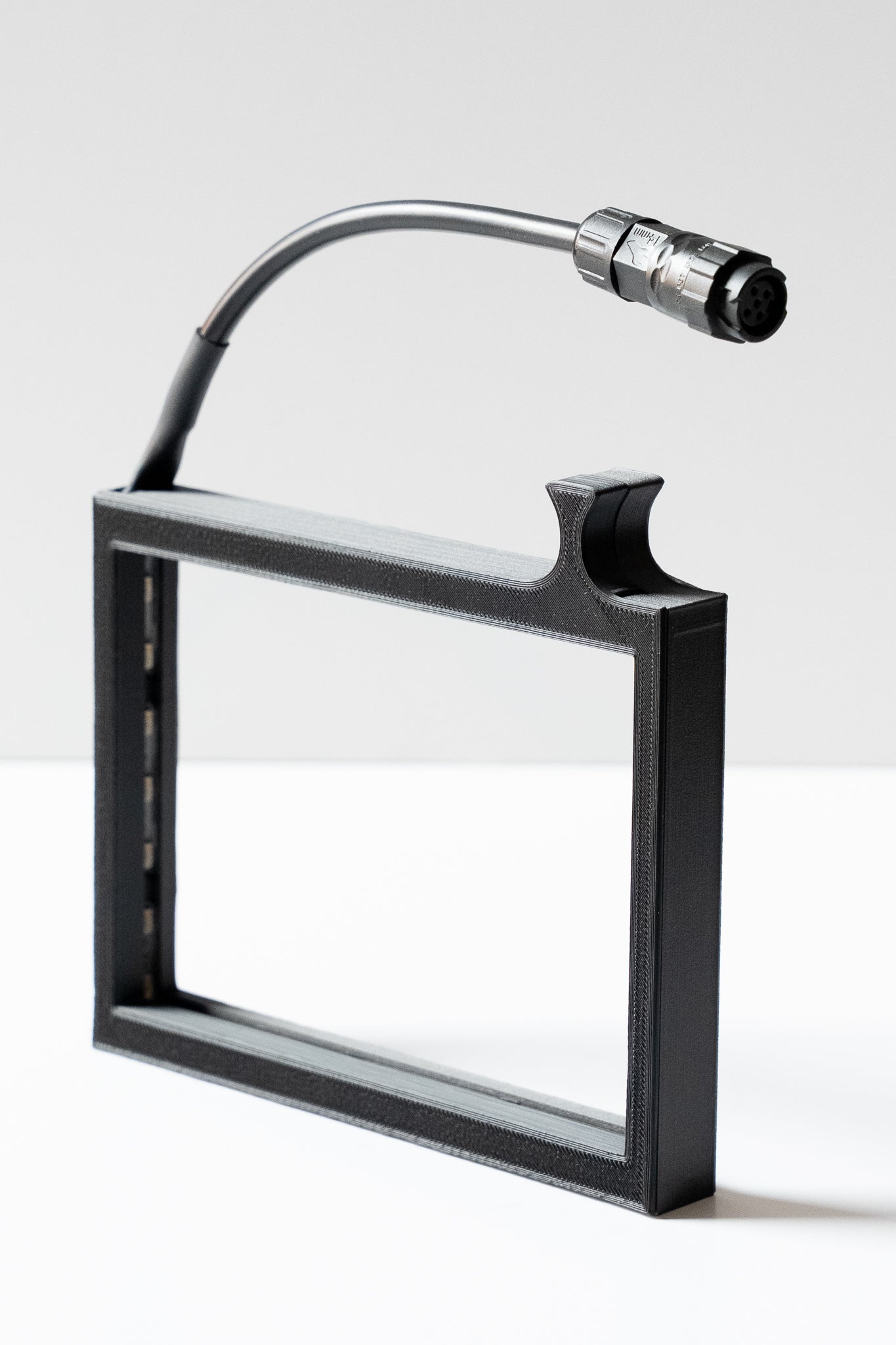

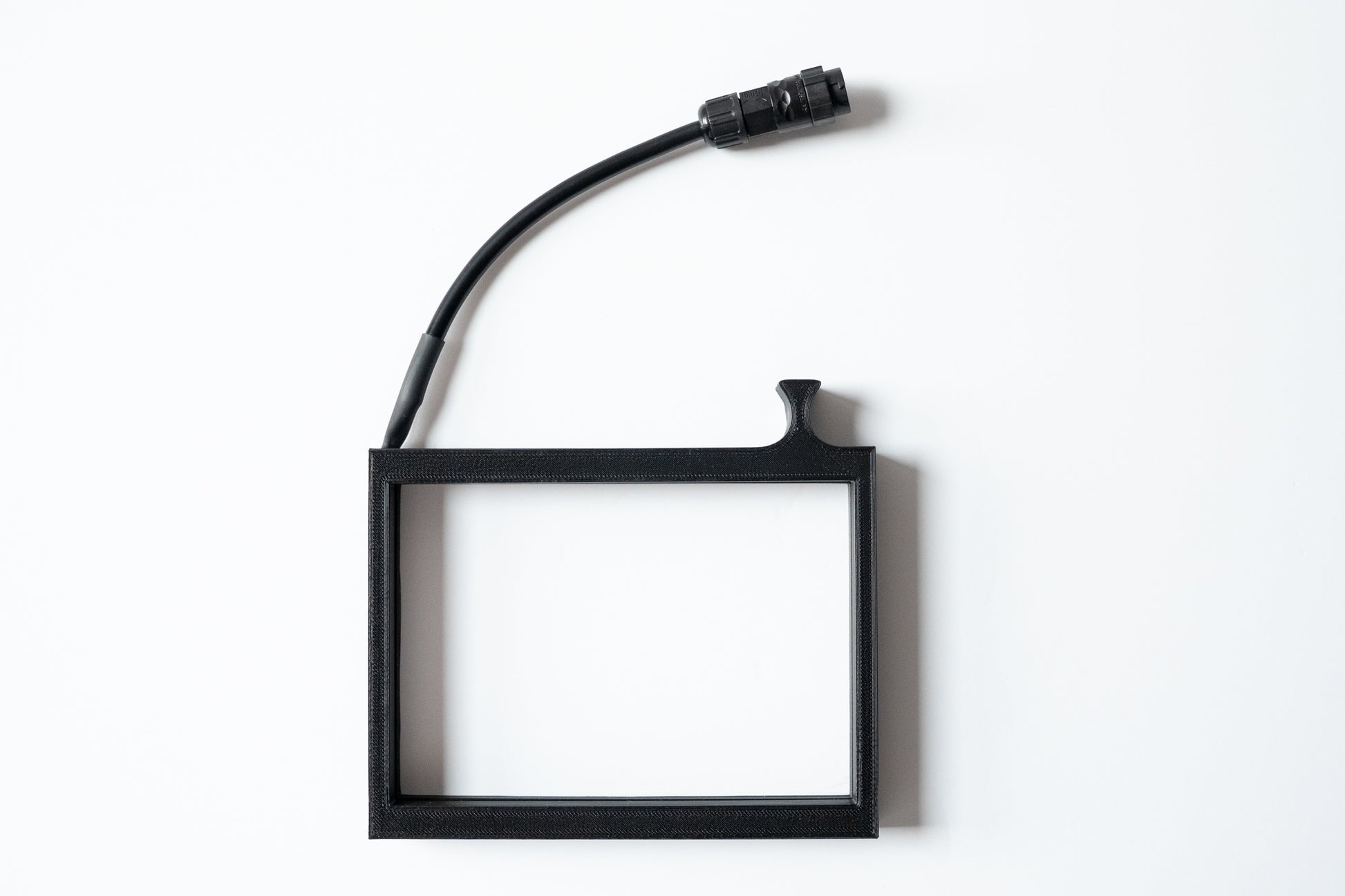

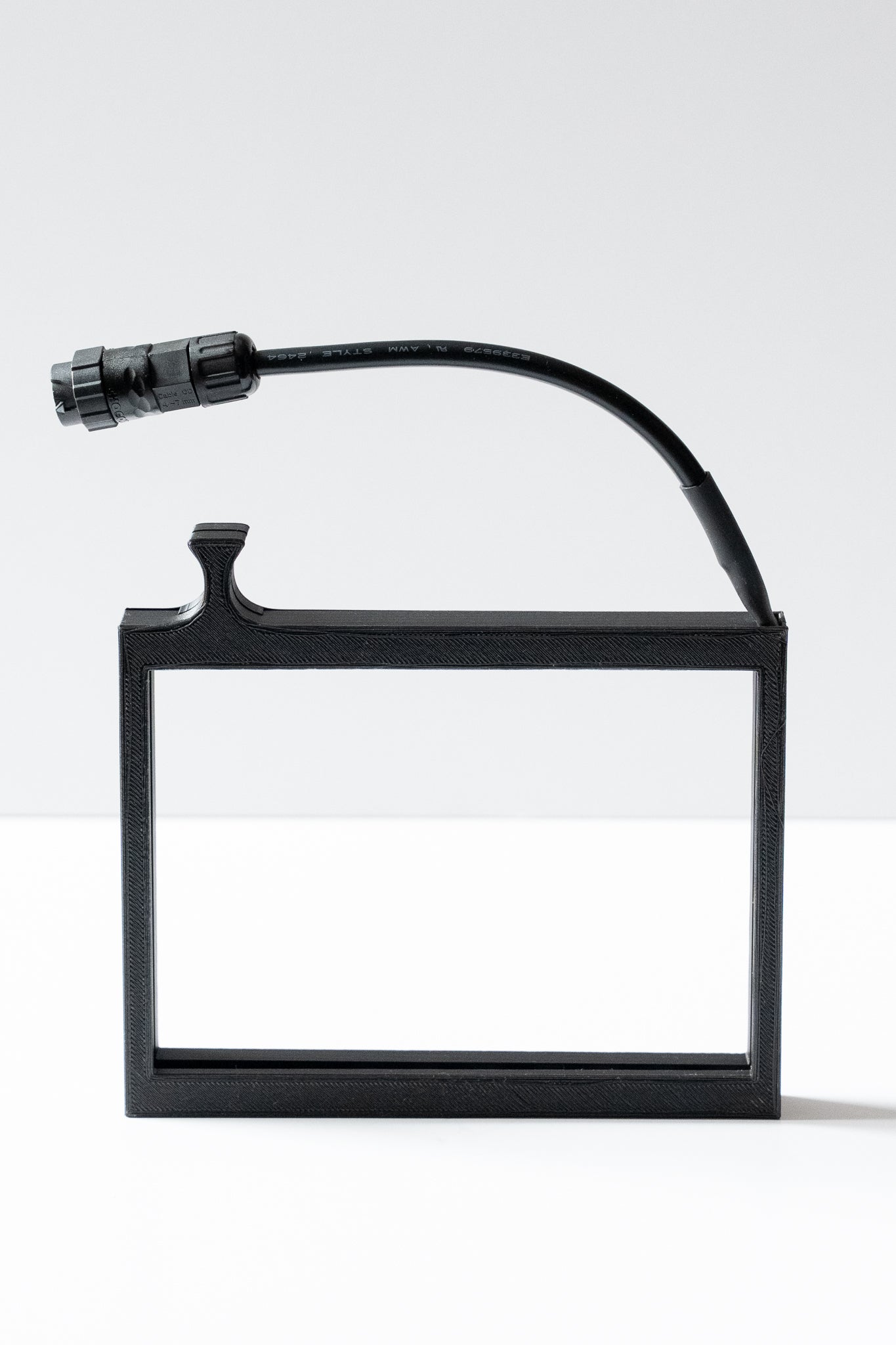

The VariColour Filter Tray is built to accept standard 4x5.65 filters and this model fits into a 3 tray ARRI LMB Mattebox.
Specifications
General
- Made from PLA bioplastic mixed with Carbon Fiber for enhanced rigidity and weight reduction
- Fits standard 4x5.65" filters up to 4.5mm in thickness
- Uses MOSS FlexLED High CRI (95+) LED lights, suitable for flicker free cinema applications

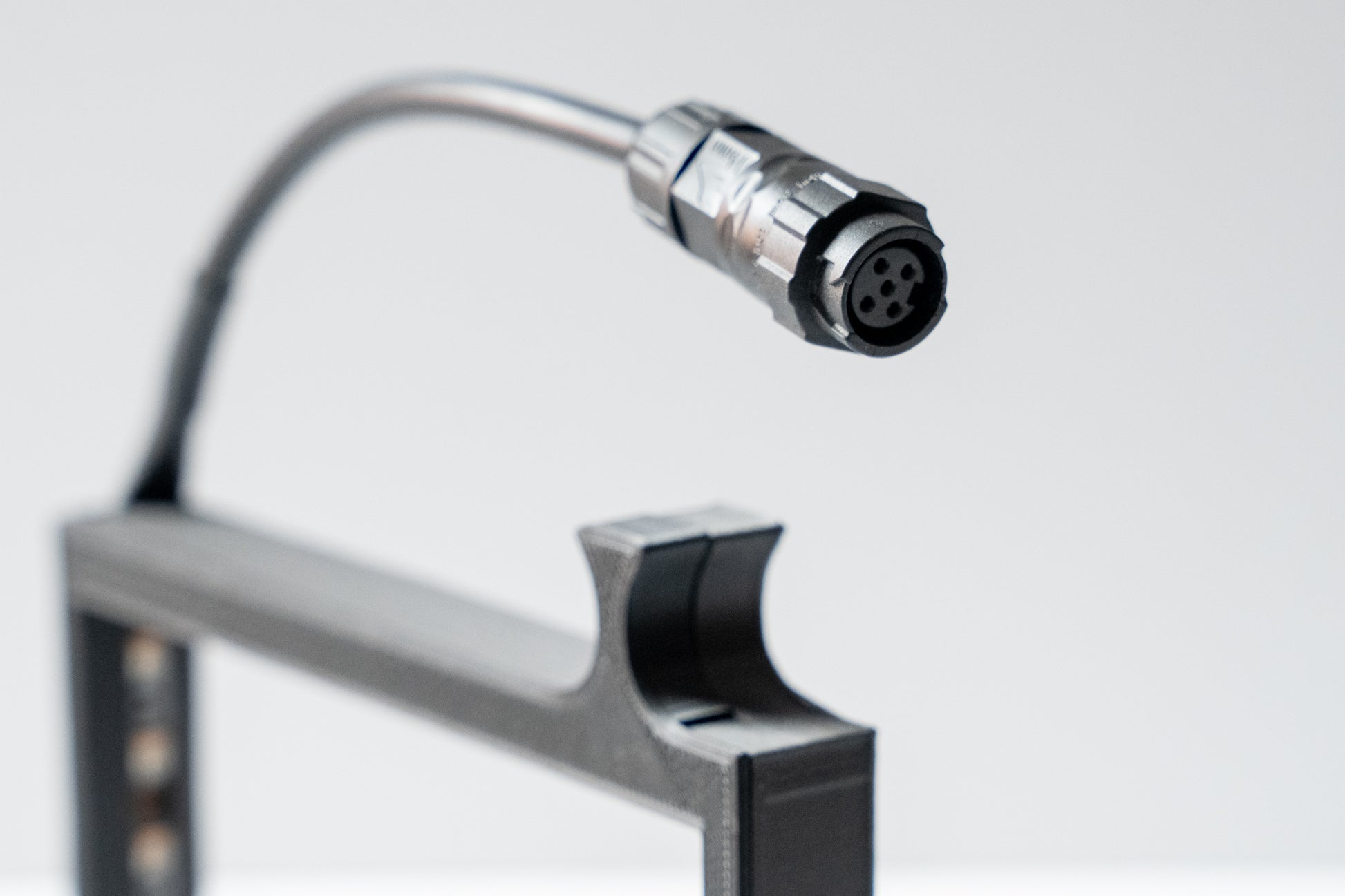

- Durable push lock connectors for easy and quick connection
- Tested to fit in ARRI LMB matteboxes with space for 3 filter trays
- Takes 12V DC D-tap Power
- Approximately 9W power draw
Precision Control Kit
- Includes a rotary dimmer for precise on camera control of the colour and contrast. This allows for specific and repeatable effects.
- 4 channel dimmer with knobs for each RGBW and with values from 0-255

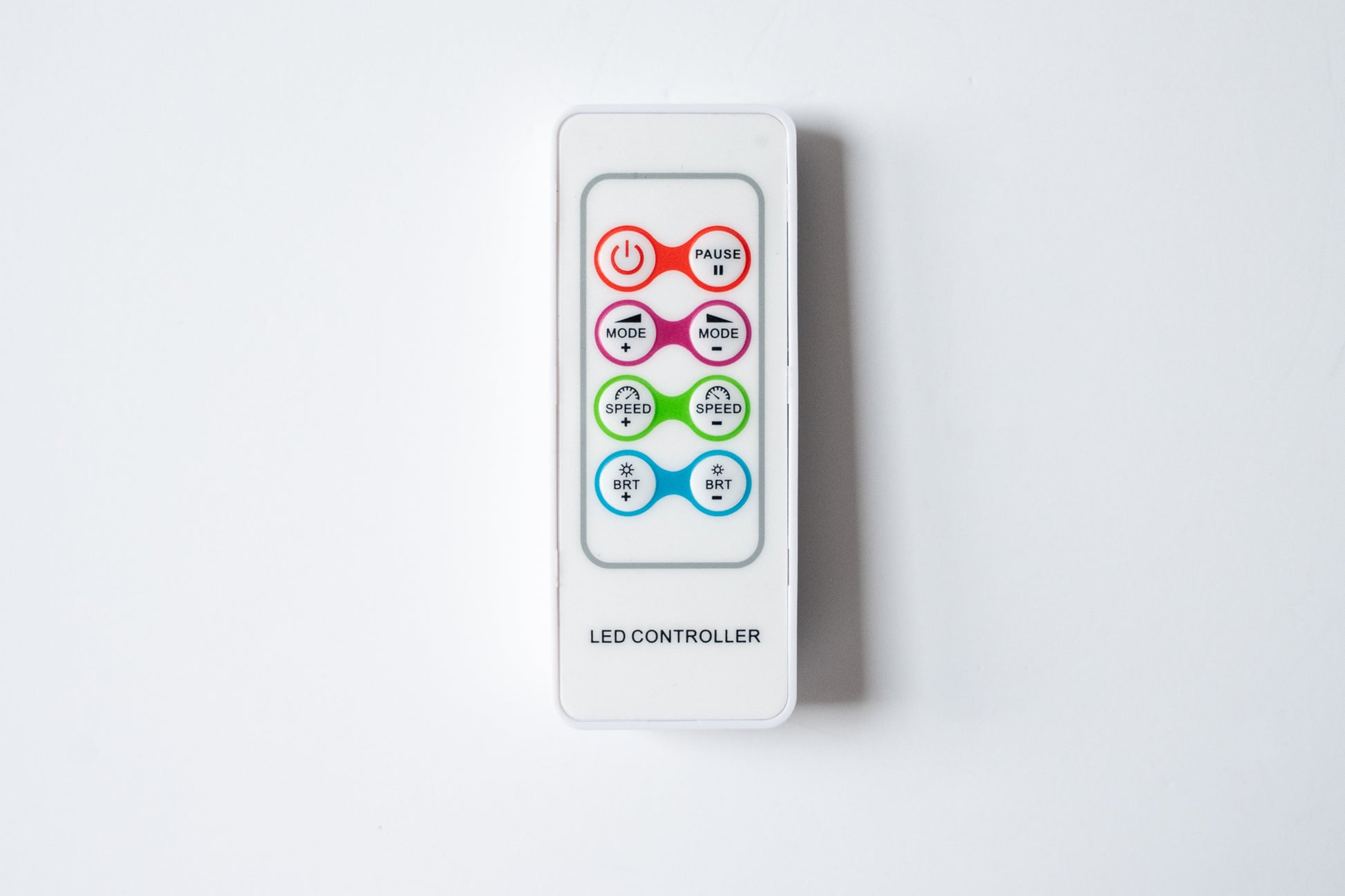

- Remote Control for off camera adjustments and access to 37 effects modes
- Dimmer has a built in cage with 1/4-insert for mounting options
- Plug and play functionality
- On camera weight of approximately 350g
Creative Control Kit

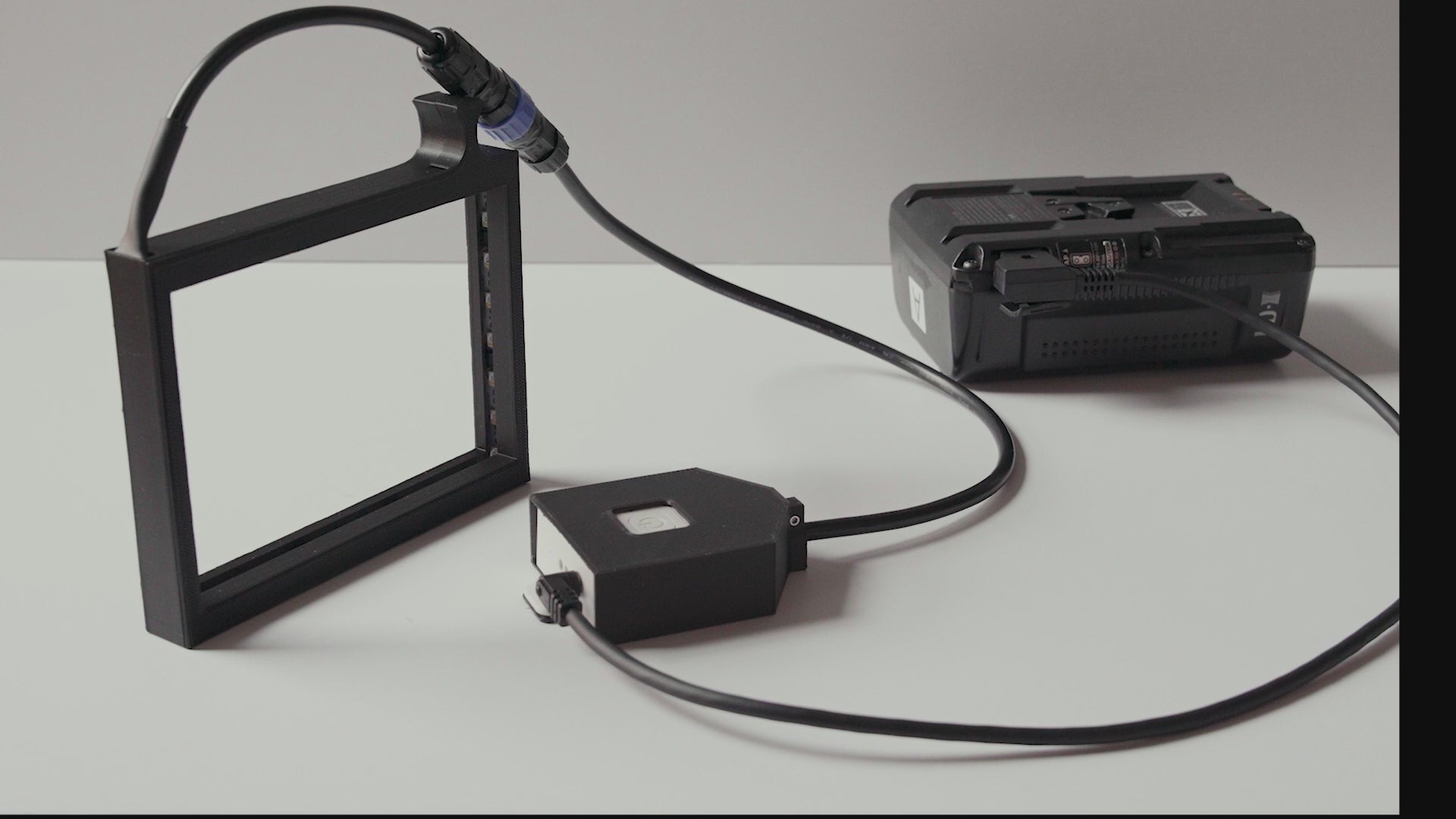

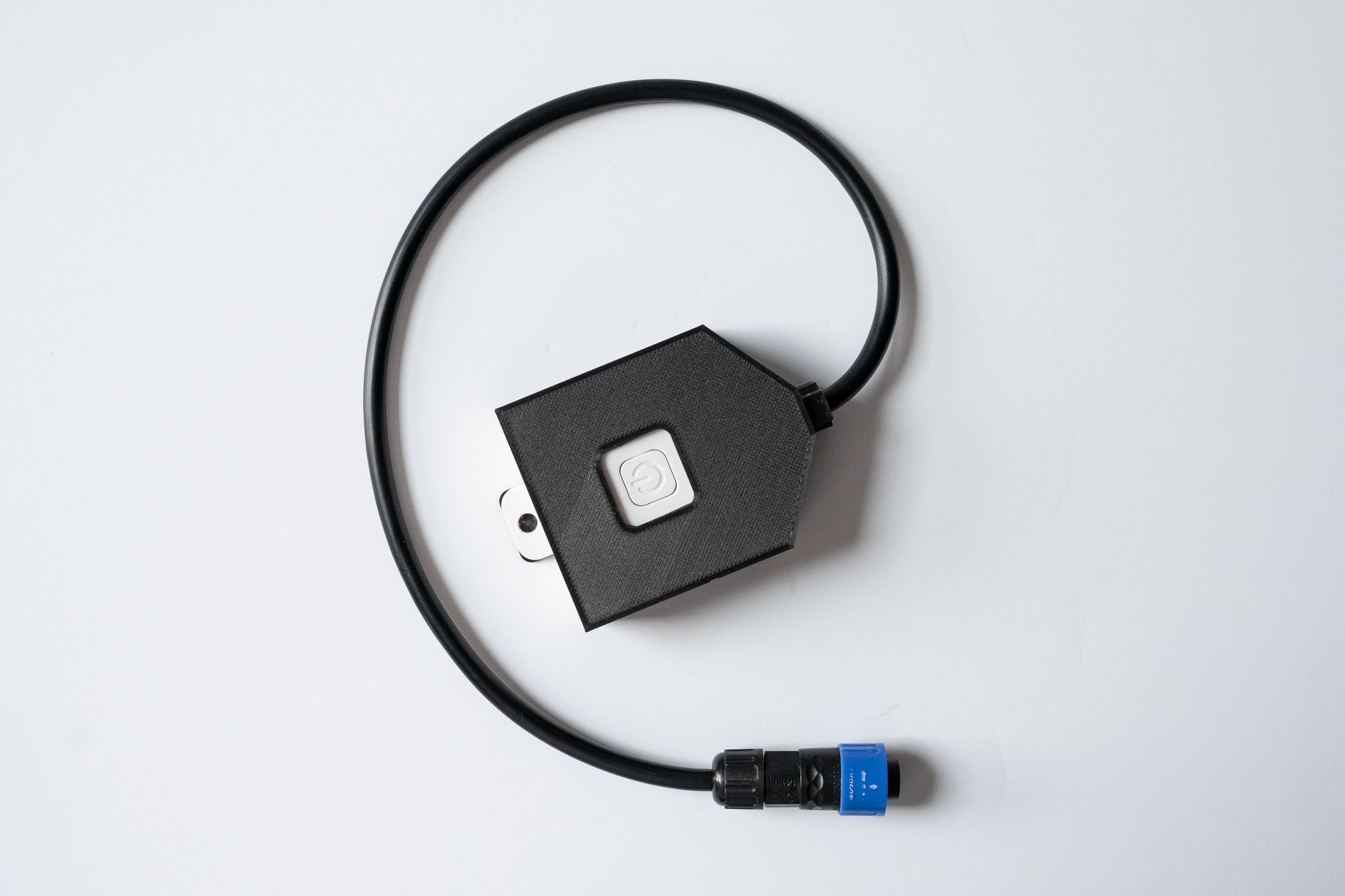

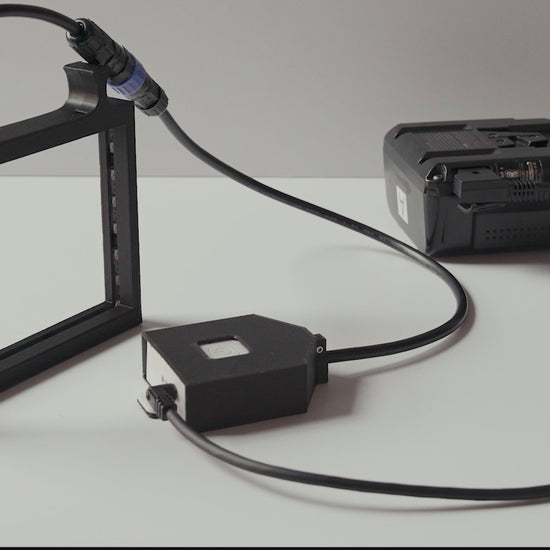

- Includes a wireless hub inside a protective housing with rear area for velcro
- Connects via bluetooth or wifi via a 3rd party smartphone app
- Has customizable and programmable effects options
- 12v DC Power
- Approximately 9W power draw
- On camera weight of approximately 230g
Precision and Creative Control Combo
- Includes rotary dimmer and wireless hub
- On camera weight of approximately 440g

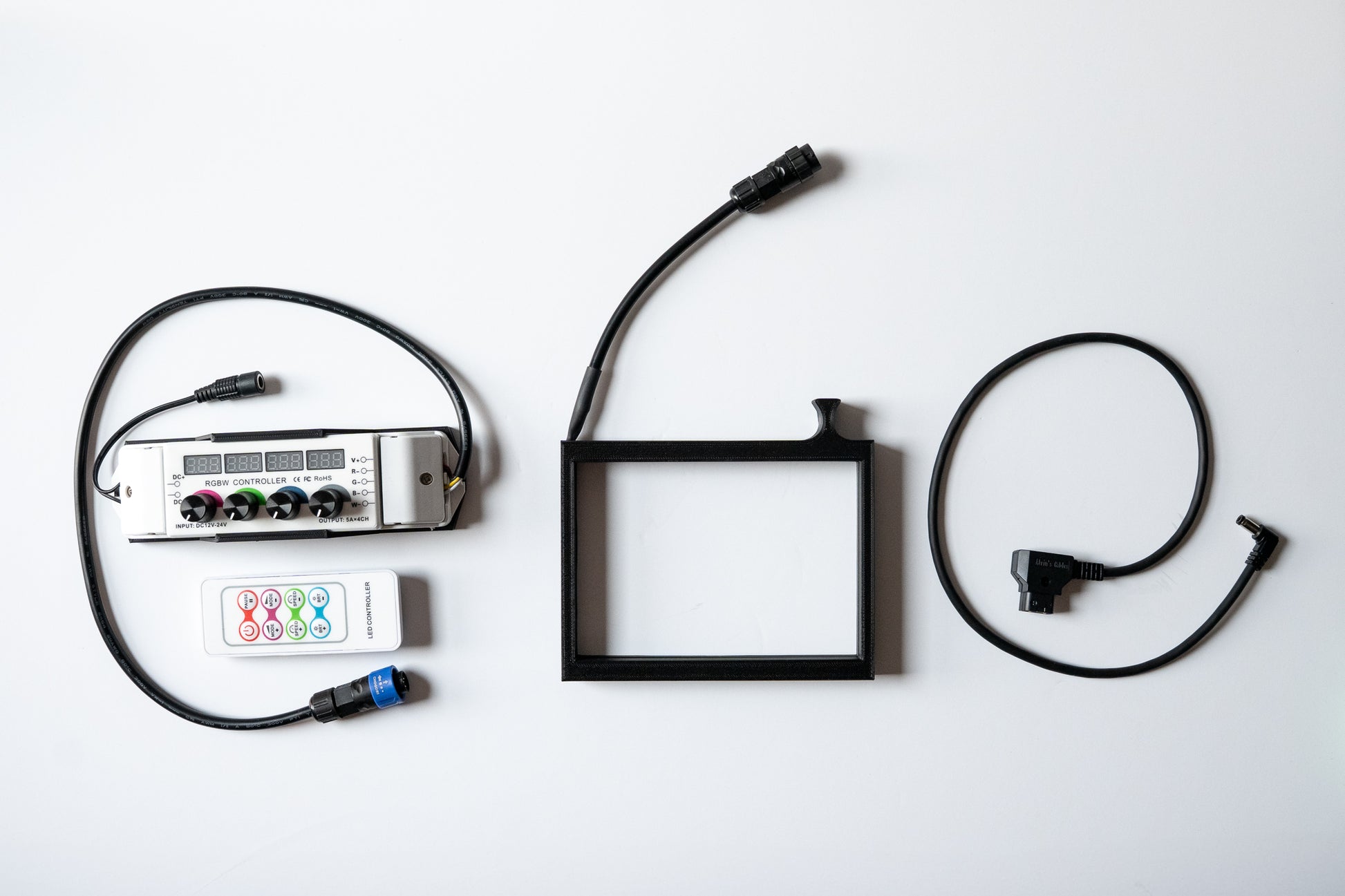

In the box
Precision Control Kit
- VariColour Filter Tray with LEDs
- VariColour Filter Tray back

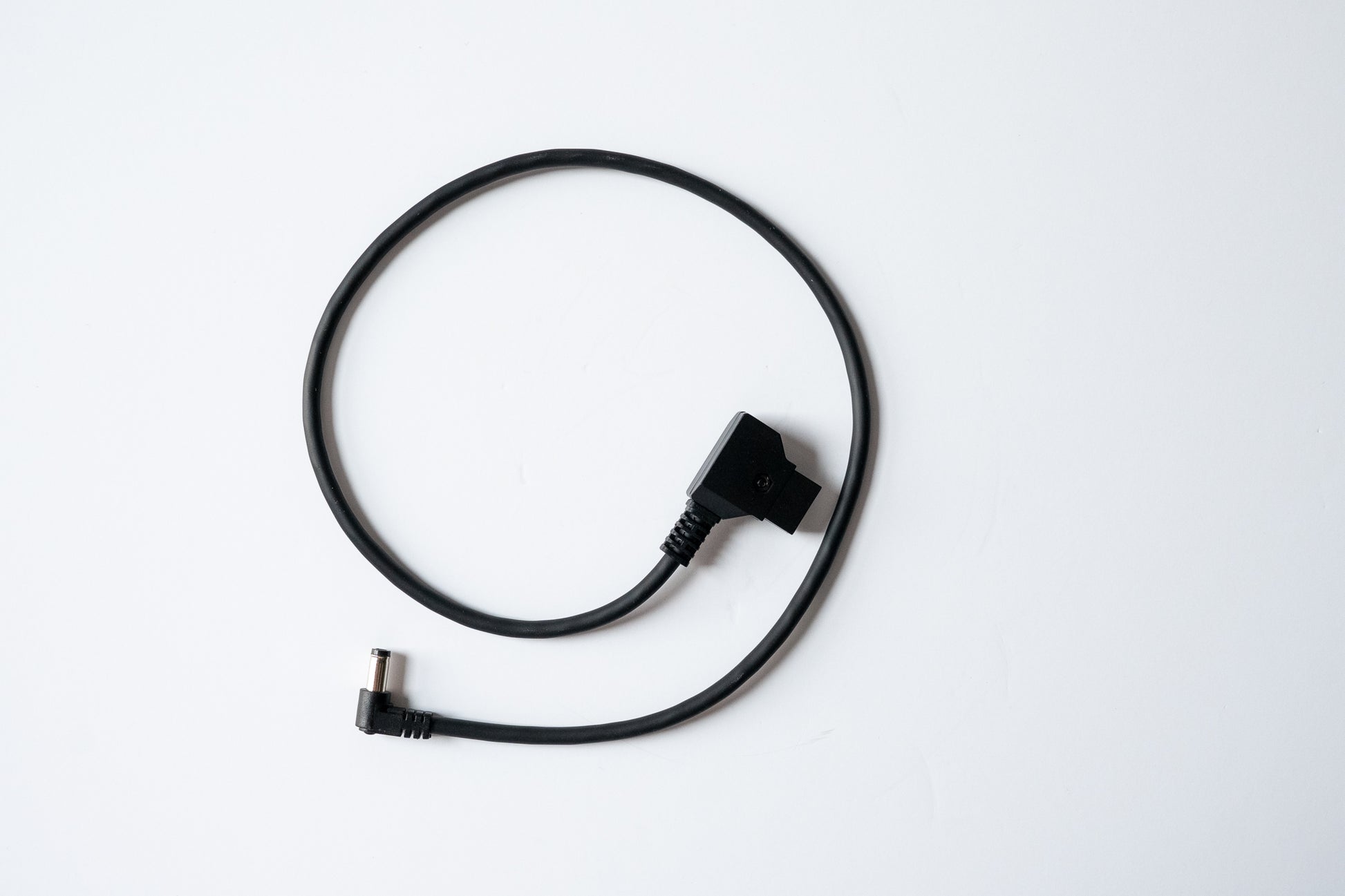

- 60cm 12V Barrel to D-tap Connector
- 4 Channel Rotary Dimmer
- Dimmer cradle with 1/4-20 insert

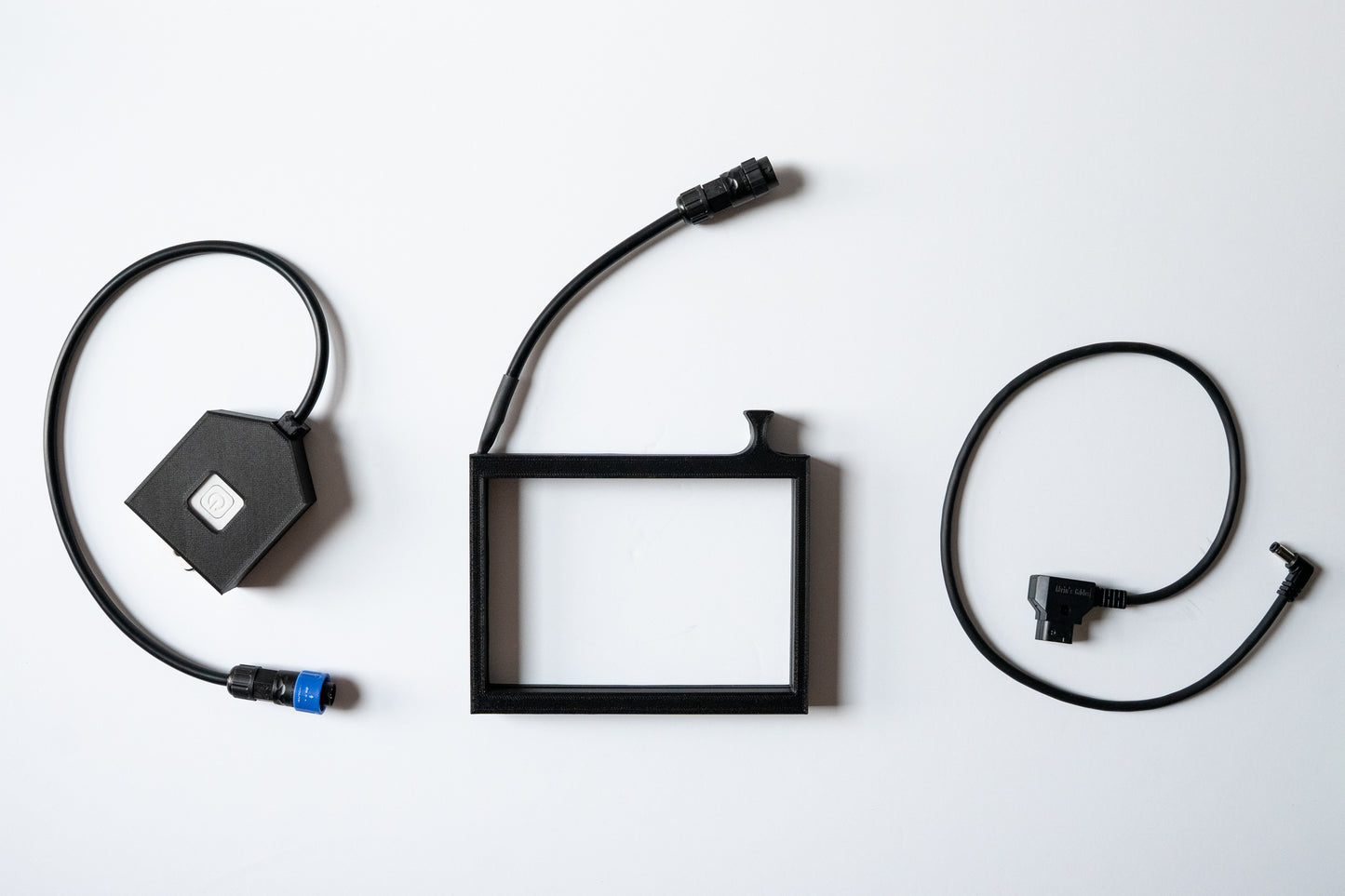

Creative Control Kit
- VariColour Filter Tray with LEDs
- VariColour Filter Tray back
- 60cm 12V Barrel to D-tap Connector
- Wireless Controller with housing + M2-6mm bolt and nut

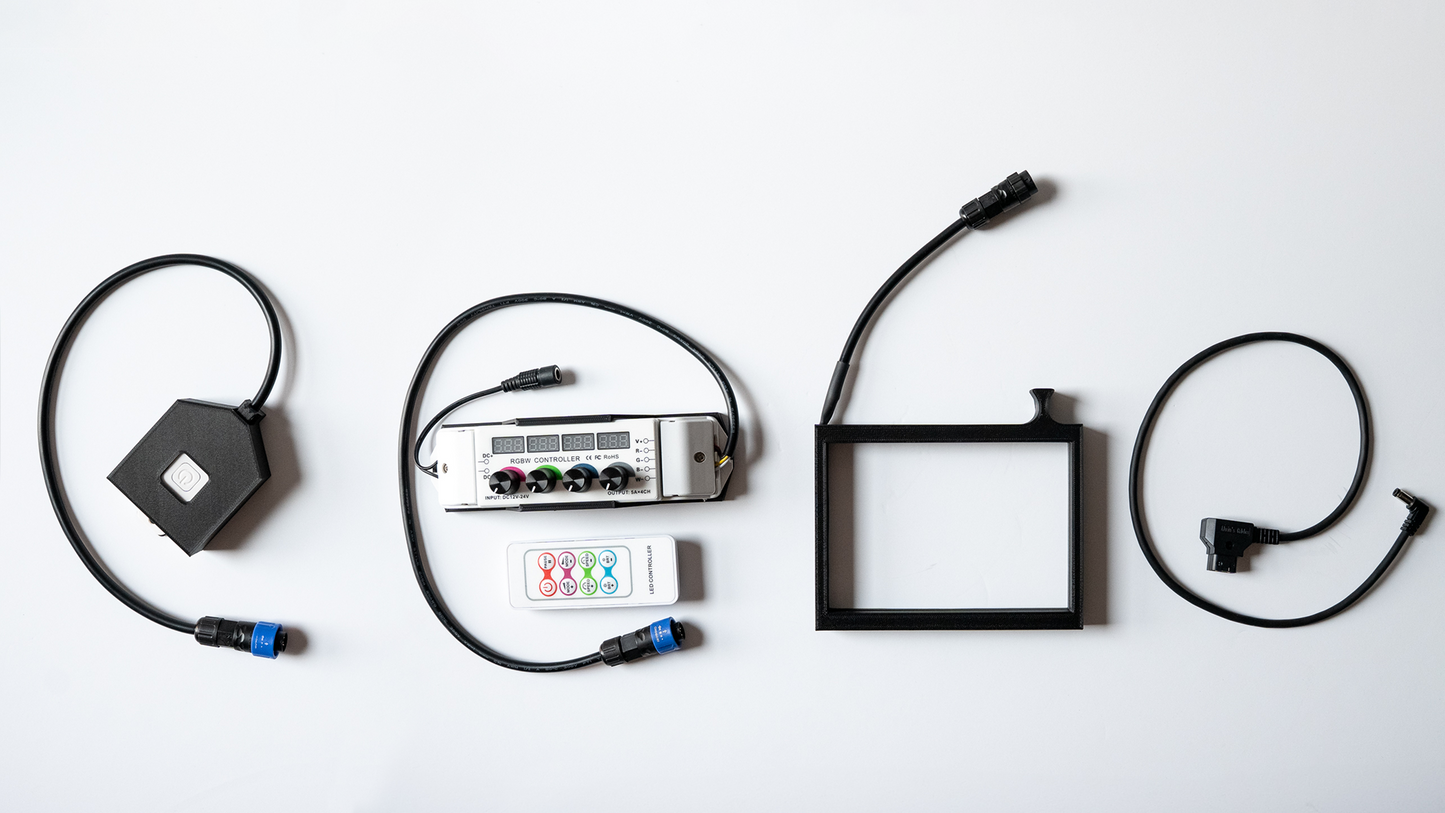

Precision and Creative Control Combo
- VariColour Filter Tray with LEDs
- VariColour Filter Tray back
- 60cm 12V Barrel to D-tap Connector
- 4 Channel Rotary Dimmer
- Dimmer cradle with 1/4-20 insert
- Wireless Controller with housing + M2-6mm bolt and nut
